Motivation

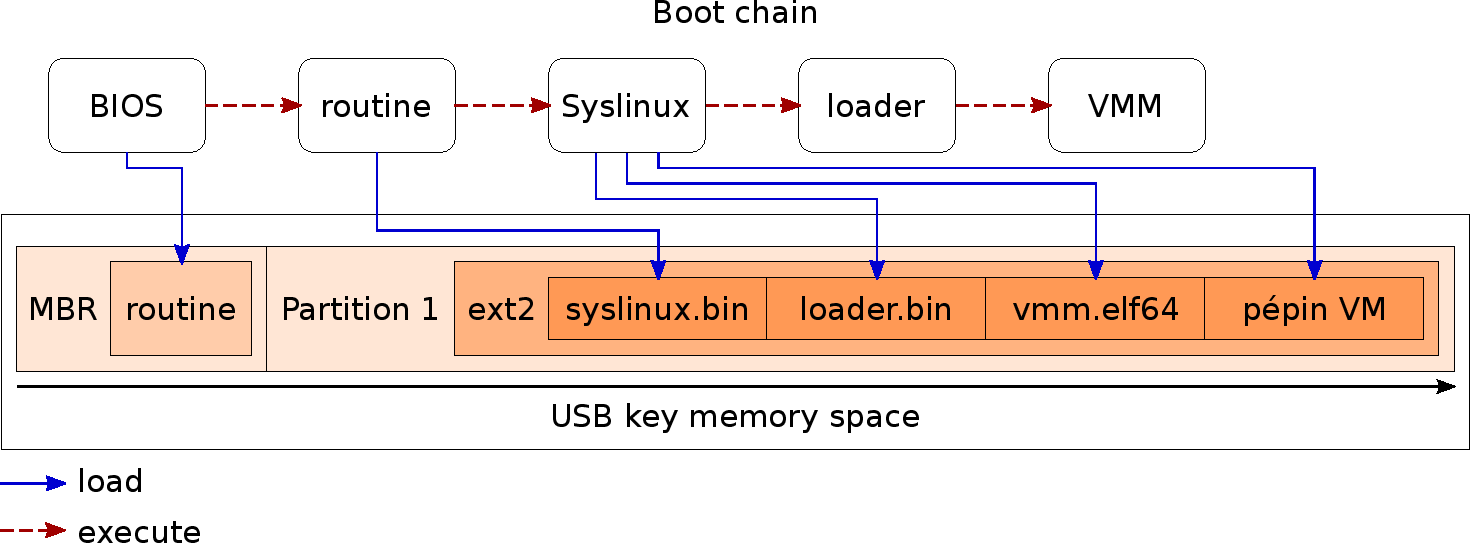

Abyme legacy hypervisor bare-metal hypervisor development. Regarding Abyme legacy boot process, it is loaded as a multiboot module by syslinux bootloader and then loaded by our ELF64 loader as depicted in the next figure.

In a regular boot chain, syslinux is only executed once, and normally to load the operating system. In our case, we load our loader and hypervisor instead and cannont benefit from syslinux anymore to decompress and loader kernel and ramdisks.

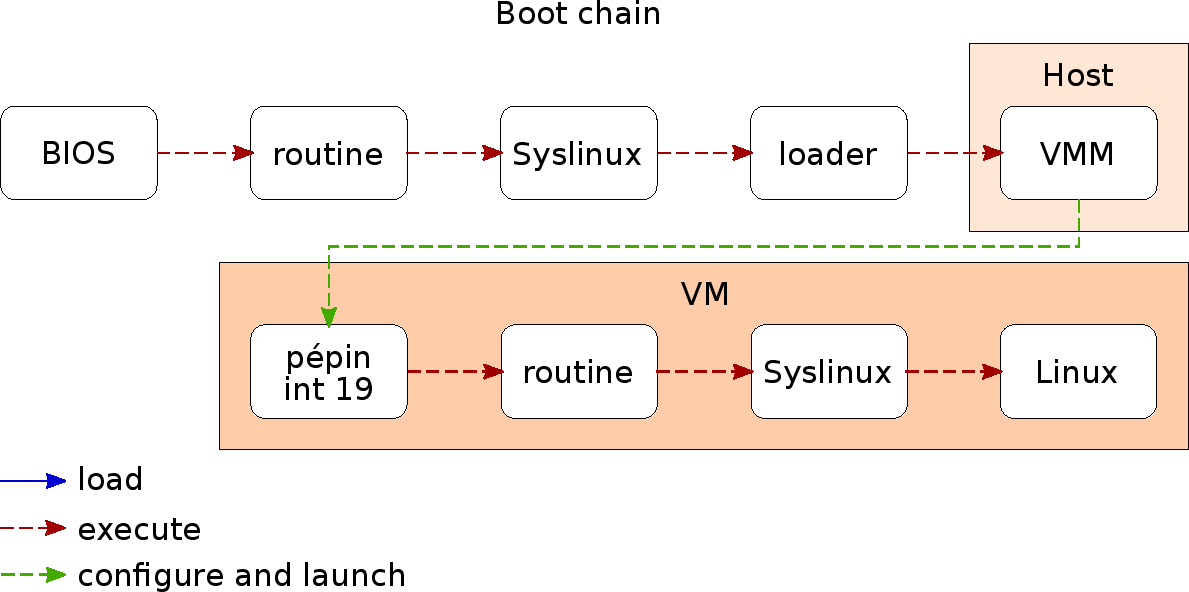

In order to avoid the development of a complex loader, we execute a very simple real mode program into the VM (Pépin VM). Its only task is to soft reboot the system using BIOS interruption int $0x19.

This strategy worked like a charm until we came out to use a UEFI firware supporting BIOS legacy mode (2013). On this new machine, reboot using int $0x19 seems not to be reentrant and gets stuck at some point.

I succeeded to understand the issue using the following hook strategy.

Hooking real mode bios to debug the firmware

Here is an example of a VM kernel hooking the bios. I will illustrate it using int 0x13 which is used to read disk sectors.

sources/rm_kernels/rm_int13/kernel.c

__asm__ __volatile__(".code16gcc\n");
int __NORETURN main(void) {
  screen_clear();
  printk("Time to own the bios...\n");
  run_protected(&own_bios, 0xf831f);
  printk("Bios owned\n:))\n");
  // Sector read
  uint8_t sector[512]; // The sector data
  if (read_first_sector(sector)) {
    printk("FAILED\n");
  } else {
    printk("SUCCESS\n");
  }
  while (1);
}

The preceding code install a hook a the bios address pointed by the real Interruption Vector Table entry 0x15 : 0xf000:831f, which is interpreted as 0xf831f in protected mode. Then it calls read_first_sector() function to get the first sector using int $0x13 bios service.

The job of this hook is to call a user defined real mode function which gets core context as a parameter when the hook has been executed.

sources/rm_kernels/rm_int13/kernel.c

void hook_bios(struct core_gpr *gpr) {
  screen_clear();
  printk("hook bios\n");
  dump_core_state(gpr);
}

The hook is installed using run_protected(fun, arg) function. This function is a trampoline from real mode to protected mode. It sets the processor in protected mode using a local GDT, executes fun(arg) and rolls back to real mode before returning to the caller. In our case, fun is the address of own_bios function.

To go back and forth real mode, we need some protected mode and real mode GDTs.

sources/rm_kernels/common_16/own_bios.s

/*
 * Descriptors.
 */
.macro GDT_ENTRY_16 type, base, limit
  .word (((\limit) >> 12) & 0xffff)
  .word (((\base)  >>  0) & 0xffff)
  .byte (0x00 + (((\base)  >> 16) & 0xff))
  .byte (0x90 + (((\type)  >>  0) & 0x6f))
  .byte (0x80 + (((\limit) >> 28) & 0x0f))
  .byte (0x00 + (((\base)  >> 24) & 0xff))
.endm

.macro GDT_ENTRY_32 type, base, limit
  .word (((\limit) >> 12) & 0xffff)
  .word (((\base)  >>  0) & 0xffff)
  .byte (0x00 + (((\base)  >> 16) & 0xff))
  .byte (0x90 + (((\type)  >>  0) & 0x6f))
  .byte (0xC0 + (((\limit) >> 28) & 0x0f))
  .byte (0x00 + (((\base)  >> 24) & 0xff))
.endm

gdt:
  GDT_ENTRY_32 0x0,                               0x0, 0x00000000
  GDT_ENTRY_32 0x8 /* SEG X */ + 0x2 /* SEG R */, 0x0, 0xffffffff
  GDT_ENTRY_32 0x2 /* SEG W */,                   0x0, 0xffffffff
  GDT_ENTRY_16 0x8 /* SEG X */ + 0x2 /* SEG R */, 0x0, 0xffffffff
  GDT_ENTRY_16 0x2 /* SEG W */,                   0x0, 0xffffffff
gdt_end:

/*
 * loaded using lgdtr
 */
gdtr:
  .word gdt_end - gdt - 1
  .long gdt

We require XR protected and real segments for %cs we also require W protected and real segments for %ds and others.

sources/rm_kernels/common_16/own_bios.s

/**
 * Runs the arg0 function in protected mode
 * with arg1 argument
 * Saves the caller segmentation config
 */
.code16
run_protected:
  push %ebp
  mov %esp, %ebp

  cli
  // We need a new gdt when we are with abyme
  //   (test without failed : triple faulted)
  // Register our gtd
  lgdt gdtr
  // Go into the protected mode
  mov %cr0, %eax
  or $0x1, %al
  mov %eax, %cr0

  // Save the segmentation state
  push %ss
  push %cs
  push %ds
  push %es
  push %fs
  push %gs

  // Select the good segments for the gdt
  ljmp $0x08, $next

.code32
next:
  mov $0x10, %ax
  mov %ax, %ds
  mov %ax, %es
  mov %ax, %fs
  mov %ax, %gs
  mov %ax, %ss

  // Calls the protected function
  // first parameter : address
  mov 8(%ebp), %eax
  // second parameter : parameter
  mov 12(%ebp), %ebx

  push %ebx
  call *%eax

  // Free memory
  add $0x4, %esp

  // Restore 16 bits segments
  mov $0x20, %ax
  mov %ax, %ds
  mov %ax, %es
  mov %ax, %fs
  mov %ax, %gs
  mov %ax, %ss
  ljmp $0x18, $end

.code16
end:
  // Go back to real mode dudes
  mov %cr0, %eax
  and $0xfffffffe, %ax
  mov %eax, %cr0

  // Restore caller segmentation
  pop %gs
  pop %fs
  pop %es
  pop %ds
  // pop %cs
  pop %ax
  pop %ss

  // Create the seg:offset address for the long jump
  // push %cs
  push %ax
  push $very_end

  ljmp *(%esp)

.code16
very_end:
  pop %eax
  mov %ebp, %esp
  pop %ebp
  sti
  retl

The previous listing allows to execute arbitraty protected mode function with one argument. We can execute run_protected(&own_bios, 0xf831f) from real mode for instance as in our kernel. own_bios() run in protected mode because it needs to access to MMIO registers in order to remap the firmware from flash to RAM in order to modify it (hook it).

Lets move on to the hooking process.

sources/rm_kernels/common_16/own_bios.s

.code32
own_bios:
  push %ebp
  mov %esp, %ebp

  /* unprotect the BIOS memory */
  // XXX Unprotecting the bios memory
  // Copying the BIOS flash in ram
  // See Intel 3rd generation core PAM0-PAM6
  movb $0x30, 0xf8000080
  movb $0x33, 0xf8000081
  movb $0x33, 0xf8000082
  movb $0x00, 0xf80f80d8

  /**
   * Get the first parameter
   * It is used to locate where to install
   * the bios hang
   */
  mov 8(%ebp), %eax
  mov %eax, handler_address

  // Save the handler
  cld
  mov handler_address, %esi
  mov $handler_save, %edi
  mov $(bioshang_end - bioshang_start), %ecx
  rep movsb

  // Own the handler
  cld
  mov $bioshang_start, %esi
  mov handler_address, %edi
  mov $(bioshang_end - bioshang_start), %ecx
  rep movsb

  mov %ebp, %esp
  pop %ebp
  ret

This piece of code does the following :

• Migrates firmware code in RAM but preserves the same physical location in memory space
• Save the code that will be erased by the copy of the hook.
• Copy the hoop over target physical address. In our case it is the IVT handler for interruption 0x13

sources/rm_kernels/common_16/own_bios.s

.code16
bioshang_start:

  cli

  // Save the things we need to be unchanged

  // %esp : %esp + 0xa
  pushl %esp
  // %eax : %esp + 0x6
  pushl %eax
  call _eip
_eip:
  popl %eax
  // %eip : %esp + 0x2
  pushl %eax
  // %ds : %esp + 0x0
  pushw %ds
  xor %ax, %ax
  mov %ax, %ds

  // Create the state structure

  // Save %eax
  movl %ss:0x6(%esp), %eax
  movl %eax, bios_state + 0x00
  movl %ebx, bios_state + 0x04
  movl %ecx, bios_state + 0x08
  movl %edx, bios_state + 0x0c
  // Save %esp
  movl %ss:0xa(%esp), %eax
  movl %eax, bios_state + 0x10
  movl %ebp, bios_state + 0x14
  movl %esi, bios_state + 0x18
  movl %edi, bios_state + 0x1c
  // Save %eip
  movl handler_address, %eax
  movl %eax, bios_state + 0x20
  // Save segments selectors
  // Save tr
  // str bios_state + 0x24
  movw %gs, bios_state + 0x26
  movw %fs, bios_state + 0x28
  movw %es, bios_state + 0x2a
  // Save %ds
  movw %ss:0x0(%esp), %ax
  movw %ax, bios_state + 0x2c
  movw %ss, bios_state + 0x2e
  movw %cs, bios_state + 0x30

  // Cleanup
  pop %ds
  pop %eax
  pop %eax
  pop %esp

  // Set up the hook_bios() environment
  xor %eax, %eax
  mov %ax, %ds
  mov %ax, %es
  mov %ax, %fs
  mov %ax, %gs
  mov %ax, %ss

  // Set our new stack
  movl $0x6000, %esp
  movl %esp, %ebp

  // Set the parameter core_gpr pointer
  movl $bios_state, (%esp)

  // Far call to us
  ljmp $0x0, $call_hook_bios

bioshang_end:

The previous listing is the piece of code overwriting original firmware in order to hook the bios. It is designed to call user handler_address in real mode and restore bios code that has been overwritten installing the hook.

sources/rm_kernels/common_16/own_bios.s

.code16
call_hook_bios:
  // Call hook_bios

  calll hook_bios
  // Restore handler code

  // Second argument : handler address
  movl handler_address, %eax
  pushl %eax
  // First argument : function address
  pushl $restore_bios
  calll run_protected
  // ljmp handler_address

  // Create the seg:offset addr
  movl handler_address, %eax
  and $0x0000ffff, %eax
  movl handler_address, %ebx
  and $0xffff0000, %ebx
  shl $0xc, %ebx
  or %ebx, %eax
  movl %eax, handler_address

  // Restore core state

  movl bios_state + 0x00, %eax
  movl bios_state + 0x04, %ebx
  movl bios_state + 0x08, %ecx
  movl bios_state + 0x0c, %edx
  movl bios_state + 0x10, %esp
  movl bios_state + 0x14, %ebp
  movl bios_state + 0x18, %esi
  movl bios_state + 0x1c, %edi
  // Restore segments selectors
  // ltr bios_state + 0x24
  movw bios_state + 0x26, %gs
  movw bios_state + 0x28, %fs
  movw bios_state + 0x2a, %es
  movw bios_state + 0x2e, %ss
  movw bios_state + 0x2c, %ds

  sti

  // Back again in bios hell
  ljmp %cs:*handler_address

Lastly the preceding piece of code restores bios code at hook location before calling user function stored at handler_address. Eventually, when user handler is returns, we give the hand back to the firmware, restoring its state right at the hooked address location.

DONE \°/.

Lessons learned

• Hooking the bios is tricky
• Interruption 0x19 was hanging in a SMM mode explicit call

outb %al, $0xb2
// god damn it !

That result ended the bios adventure on this machine, indeed, the SMM SMI handlers are not reentrant, that is we cannot soft reboot the machine anymore. The only solution is now to manually chain load a bootloader or a kernel, which is time killing. That’s why we decided to migrate Abyme to UEFI firmwares.
